Mono Monster

This mono CX-Series Amp is now one-ohm stable, giving you even more wiring options for your system! Using a Class-D power plant, the CXA1200.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection.

CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!

Use the full-range outputs to expand your system with other bass amps, or add a full-range amp to complete your system.

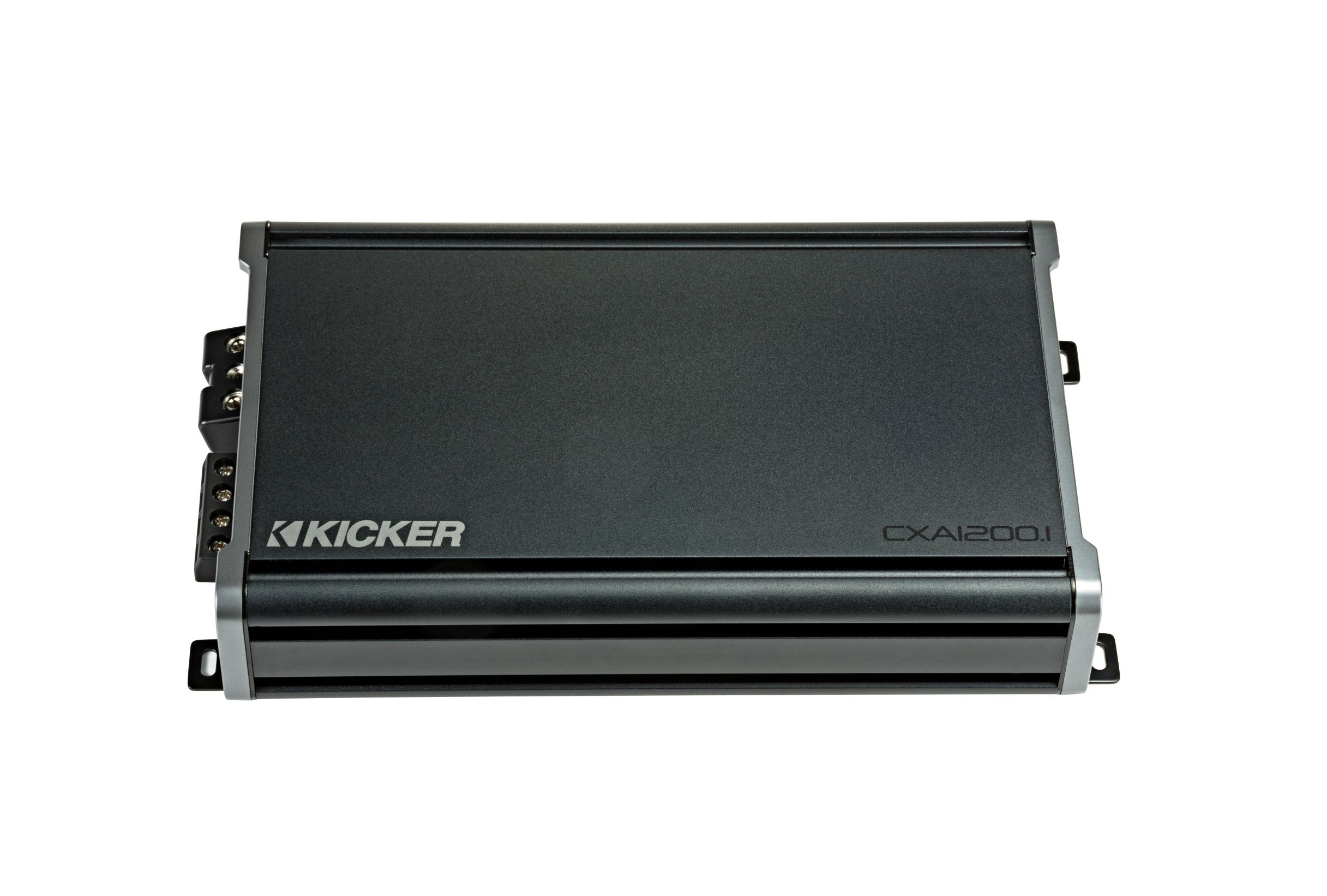

This CX.1 Amplifier delivers as much as 1,200 watts into one bass channel. See below for more details.

Efficient Class-D amplifier
Three-second turn-on/off delay to eliminate unwanted interference
Variable 12dB crossovers provides control to dial in perfect sound
KickEQ™ 6dB variable bass boost for those additional low frequencies
24dB subsonic filter for protection from potentially damaging frequencies
FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
Accepts up to 40-volt input signal
Small footprint for easier installation
Compatible with CXARC Remote Bass Control
Vertical mounting hardware included for another unique look

Specifications
MODEL
CXA1200.1
Power (watts/ch) 4 Ohm
600×1
Power (watts/ch) 2 Ohm
1200×1
Power (watts/ch) 1 Ohm
1200×1 +/-10%
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x …L)
12, 30.6
Frequency Response (Hz):
25-200Hz
Input Sensitivity:
125mV–5V (Low Level)
1V–40V (High Level)
Signal-to-Noise Ratio:
95dB
Active Crossover:
Variable Lo-pass 50Hz–200Hz, 12dB/octave
Subsonic Filter:
25Hz @24dB/octave
KickEQ™ Boost
Variable 0-6dB @40Hz
