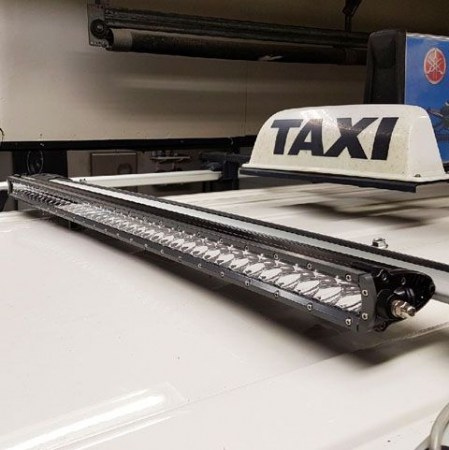

Lightforce CB40XP 40" SINGLE ROW LED BAR - DUAL WATTAGE

SKU: CB40XP

Our Price (inc gst):$ 899.80
Want to order this product? Send us an enquiry here and we'll get straight back to you with details.
Seen It Cheaper? Chat With Us Now

Own it now, Pay later

zip logo
heart icon

Want it

Choose the items
you love and select
Zip at checkout
cart icon

Get it

We pay the store,
you get the goods,
nothing to pay today
thumbsup icon

Own it

Choose how you pay
us back over time,
interest free
zip money logo
zip pay logo

*A $6 monthly account fee applies. Pay your balance by the due date
(the end of next month) and we'll waive the fee. See full Ts & Cs

40-inch-single-led-bar
Description
Lightforce legendary performance now available in next generation LED Bars, extruded from 6063 aluminium and finished in a UV-resistant anodised coating to face the harshest conditions.

KIT INCLUSIONS

1 x Lightforce single row LED Bar

2 x Stainless steel brackets and hardware

1 x Full wiring harness (including relay and switch connector)

User instructions

PRODUCT DETAILS

Lightforce performance is now available in next-generation LED Bars, extruded from aluminium and finished in a UV resistant anodised coating to face the harshest conditions in the world.

The Lightforce LED Bar range is rugged and impact resistant, featuring a hard-coated polycarbonate lens for durability and a waterproof rating to IP69K. The LED Bar range utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in their class. With multiple mounting options available and complete with a waterproof Deutsch connector – including full wiring harness – the Lightforce LED Bar range delivers powerful performance in a simple package.

FEATURES

  • Extruded aluminium body with black anodized coating
  • IP69K rated to protect against moisture / contaminant ingress
  • Hard coated, scratch and high impact resistant polycarbonate lens
  • Custom moulded strain relief connector fitted to military spec cable
  • Genuine Gore® waterproof membrane with mechanical seal
  • Submersible to 3 metres
  • Over, under and reverse voltage protection
  • Pulse width modulation thermal management circuitry
  • Protected against electromagnetic and radio frequency interference (RFI)
  • Stainless steel brackets and mounting hardware
  • Comprehensive wiring harness
  • Broad operating voltage range of 10 ~ 36 volts
  • Input cable length: 450mm (17.72″).Wiring Harness Length 2.5m (92.43″)
  • Deutsch waterproof connectors
  • RoHS certified
  • 3 Year warranty.

PRODUCT SPECIFICATION

More Information
Distance: 1 lux at 689m
Distance: 0.25 lux at 1378m
Effective Lumens 6267
Raw Lumens 13,568
Colour Temperature 5000K
Current Draw 11.6Amps @ 13.2V
Voltage Range 10V - 36V DC
Wattage 148W
Ingress Protection Rating IP69K
Weight 6kg

40 Inch LED Bar

1 LUX AT 789 METRES

LED Bar Single Row 40 Inch Photometrics

MOUNTING OPTIONS

Our 40 Inch Single Row LED Bars come complete with a waterproof Deutsch connector, including full wiring harness with multiple mounting options available. Please consult the diagram to see how the dimensions of these bars and their mounts can fit your vehicle.

40 Inch Single Row LED Bar Dimensions

LED Bar Photometric
