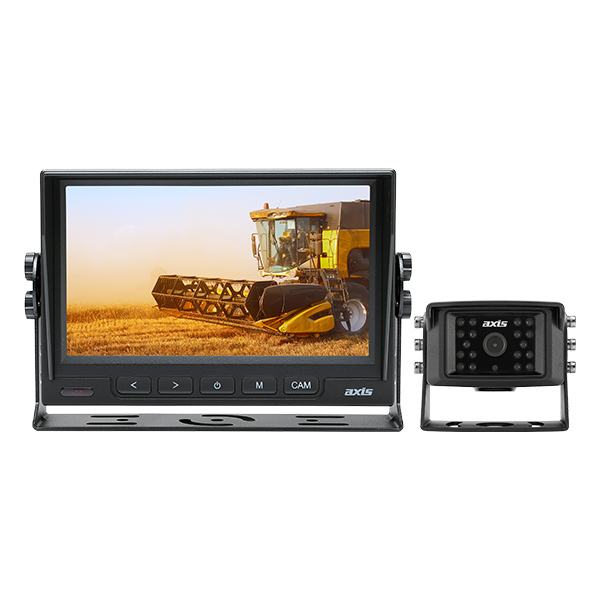

7” HEAVY DUTY LED MONITOR & HEAVY DUTY CAMERA KIT

The JS7001K is a heavy duty 12/24V monitor & camera system for in-vehicle reversing safety applications. Suitable for trucks, machinery, 4WD’s or caravans. The weatherproof camera offers a clear image so that drivers can have a enhanced view of their surroundings when reversing

MONITOR
– TFT Panel: New Grade A LCD, LED Backlight
– LCD Size: 178mm (7-Inch) Diagonal
– Display Format: 16:9
– Resolution: 800 x 480
– Brightness: < 400 CD/M2
– Viewing Angles: 90 Deg. Left/Right/Up/Down
– Video System: Auto PAL/NTSC Select
– Video Connect: 2 x 4-Pin (Female)
– Reverse Trigger: Assignable to Cam 1 or 2 (via Menu)
– Camera View: Input Selectable (CAM Button), Input Override in Reverse Mode
– Monitor View: Normal/Mirror Image Select
– Guidelines: Selectable
– Audio: On Board Speaker
– Main Menu: Brightness/Contrast/Colour/Volume/Reset/Slideshow/Language/Reverse Priority & Delay
– Casing Material: 100°C Heat/Flame Proof (UL94V-0) ABS Material
– Power Input: 10-32V DC (Negative Ground)
– Dimensions: 182W x 122H x 29D mm (excluding brackets)
– Included: Stand Mount, U-Shape Mount, Remote Control, Power Cable Assembly, Sunshade

CAMERA
– Image Device: 1/3” Nextchip NVP2040 CCD
– Image Sensor: Sony ICX639XK
– Diagonal Viewing Angle: 130°
– Horizontal Viewing Angle: 90°
– Signal System: PAL
– Effective Pixels: 752H x 582V
– Resolution: 600 TV Lines
– Sync System: Internal
– Orientation: Mirror Image
– Night Vision: Yes, 18 LED
– Illumination: 0.1 Lux with IR on
– Ingress Protection: IP67
– Integrated Microphone: Yes
– Operating Temperature: -20 to 70°
– Power Consumption: 90-300mA
– Dimensions: 77W x 52H x 69D mm (Excl Bracket)
– Connection: Terminated 4-Pin Male
– Power Supply: 8-50V DC
– Included: 15m 4 Pin (Male) to 4 Pin (Female) Extension Cable, Mounting Bracket

Optional: Glass Mount Bracket (BKT101)
