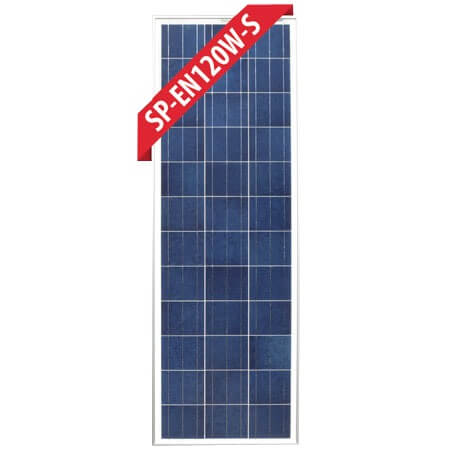

Enerdrive 120W Slim Fixed Poly Solar Panel (Silver or Black Frame)
SKU: SP-EN120W-B-S
Own it now, Pay later
Features
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
Enerdrive has a range of Mono & Poly Crystalline solar panels from 10 to 200watts. Each module is typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Enerdrive stocks a full range of spare cables. With a mass of factories developing solar panels around the world, the biggest choice is ‘Where to buy” & even more importantly “What quality and support am I getting”. Enerdrive can become your single point contact for all things relating to solar products, warranty and importantly that same level of support that we have provided
for many years with all Enerdrive products.
If you buy from us you will ALWAYS be dealing with Enerdrive for warranty, and we won’t hide behind supplier warranty statements or clauses. Enerdrive’s volume will allow us to ensure that any quality or warranty issue can be dealt with LOCALLY.
Specifications
| 120W Slim Fixed Poly Solar Panel, Available in Silver or Black Frame | |
|---|---|
| SKUr | SP-EN120W-S (Silver Frame) SP-EN120W-B-S (Black Frame) |
| Max Power Pm(W) | 120 |
| Power Tolerance % | – 1% ∼ + 3% |
| Max Power Voltage Vm(V) | 18.4 |
| Max Power Current Im(A) | 6.53 |
| Open Circuit Voltage Voc(V) | 22.8 |
| Short Circuit Current Isc(A) | 7.23 |
| Max System Voltage (VDC) | 1000 |
| Dimensions (mm) | 1578 x 541 x 35 |
| Weight (kg) | 11 |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
| Note: Specifications subject to change without notice. |
