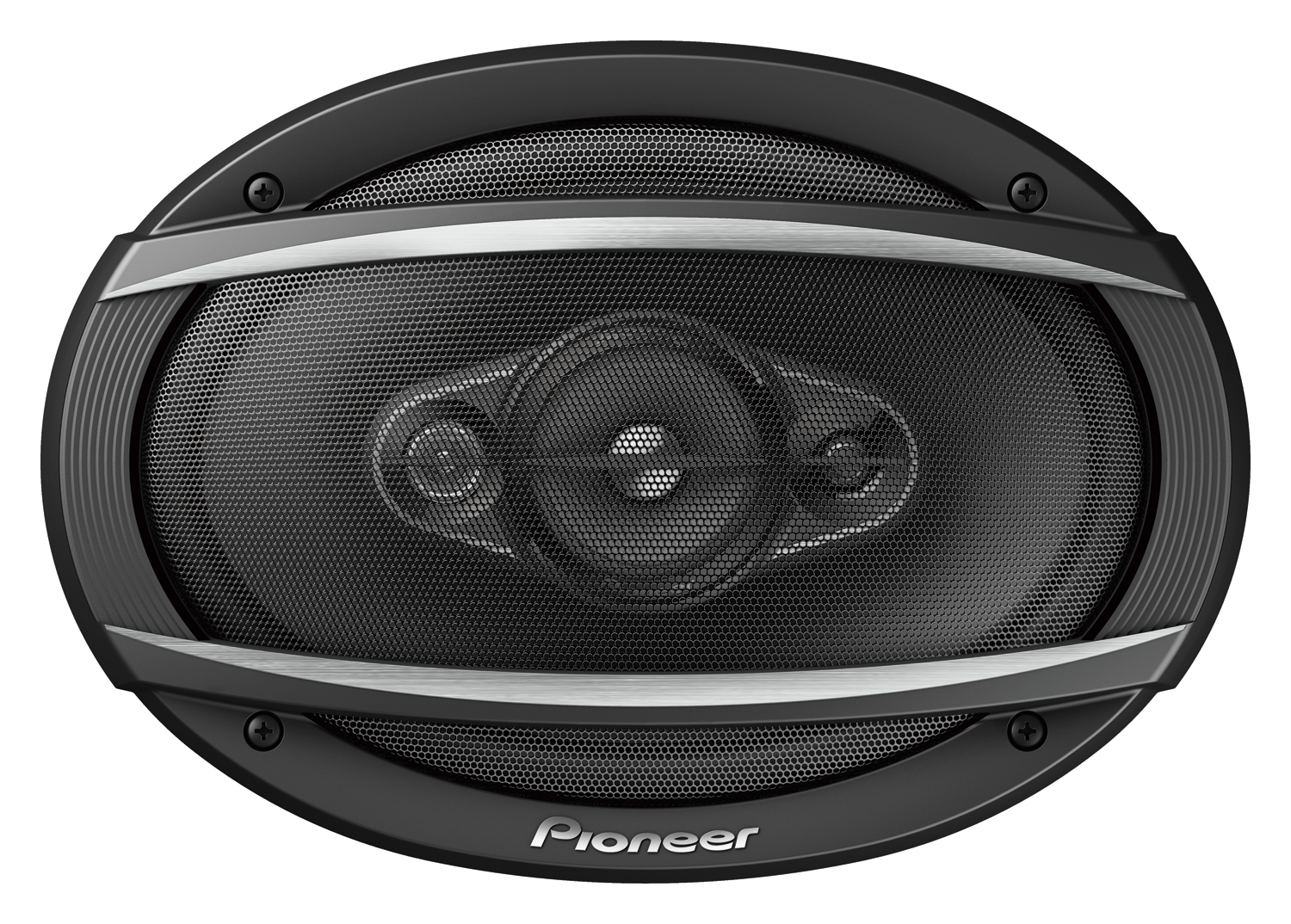

PIONEER TS-A6960F - 6"x 9” 4 Way Speaker System
SKU: TS-A6960F
Own it now, Pay later
• New Carbon & Mica reinforced IMPP Cone Design.
• Pioneer “Open & Smooth”™ Sound Concept.

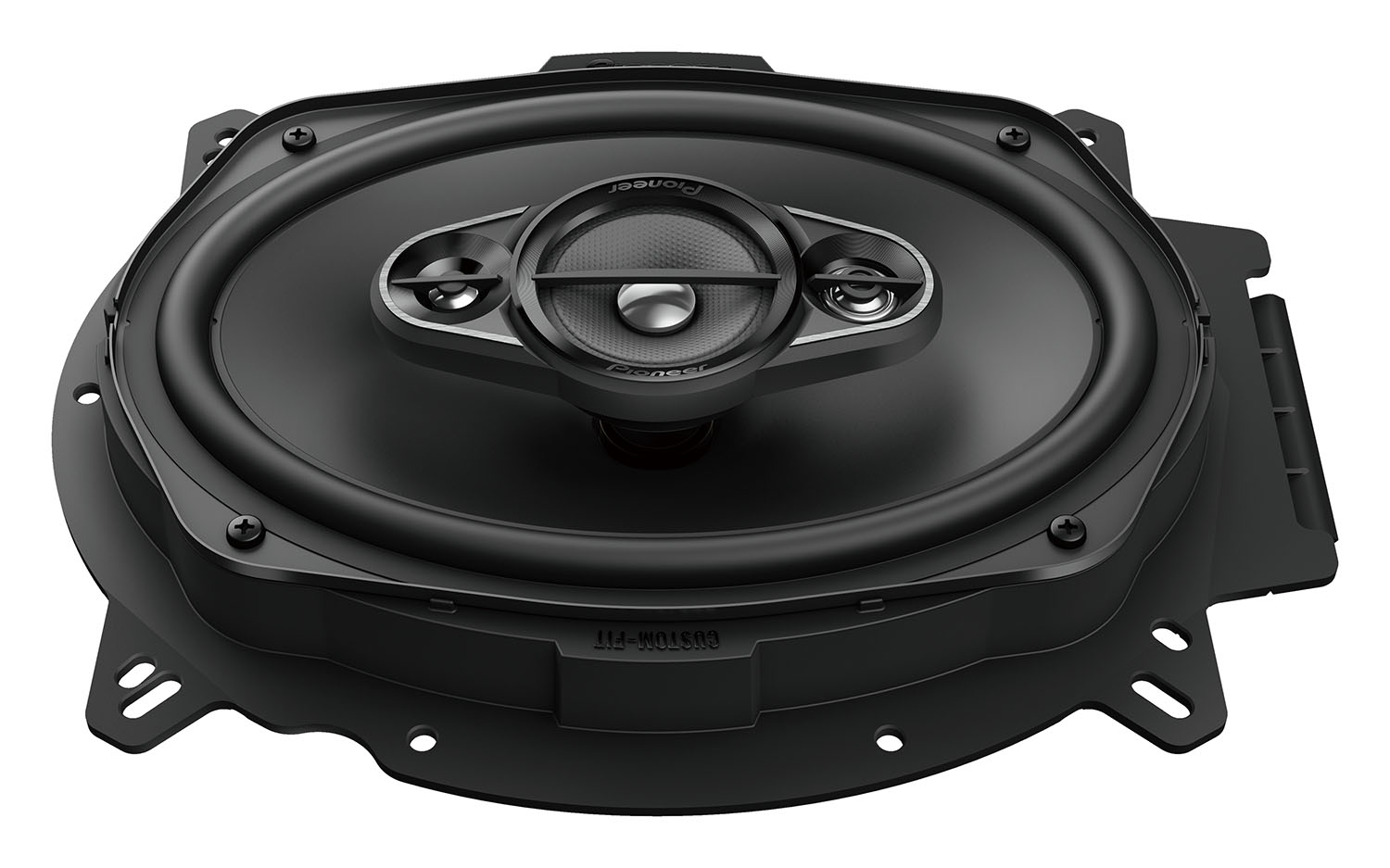

• Newly designed speaker adapters included.
Pioneer’s next generation of TS-A series speakers offer Carbon & Mica reinforced IMPP cone. This combined with a new magnetic circuit and long symmetrical voice coil make both rich deep bass and low distortion possible.
Newly designed speaker adapters offer a wide range of installation options and help to ensure a well-controlled sound. A design change has been applied which also removes the lead wire connection from the speaker face, giving a new clean look and reduces the risk of shorts and signal noise.

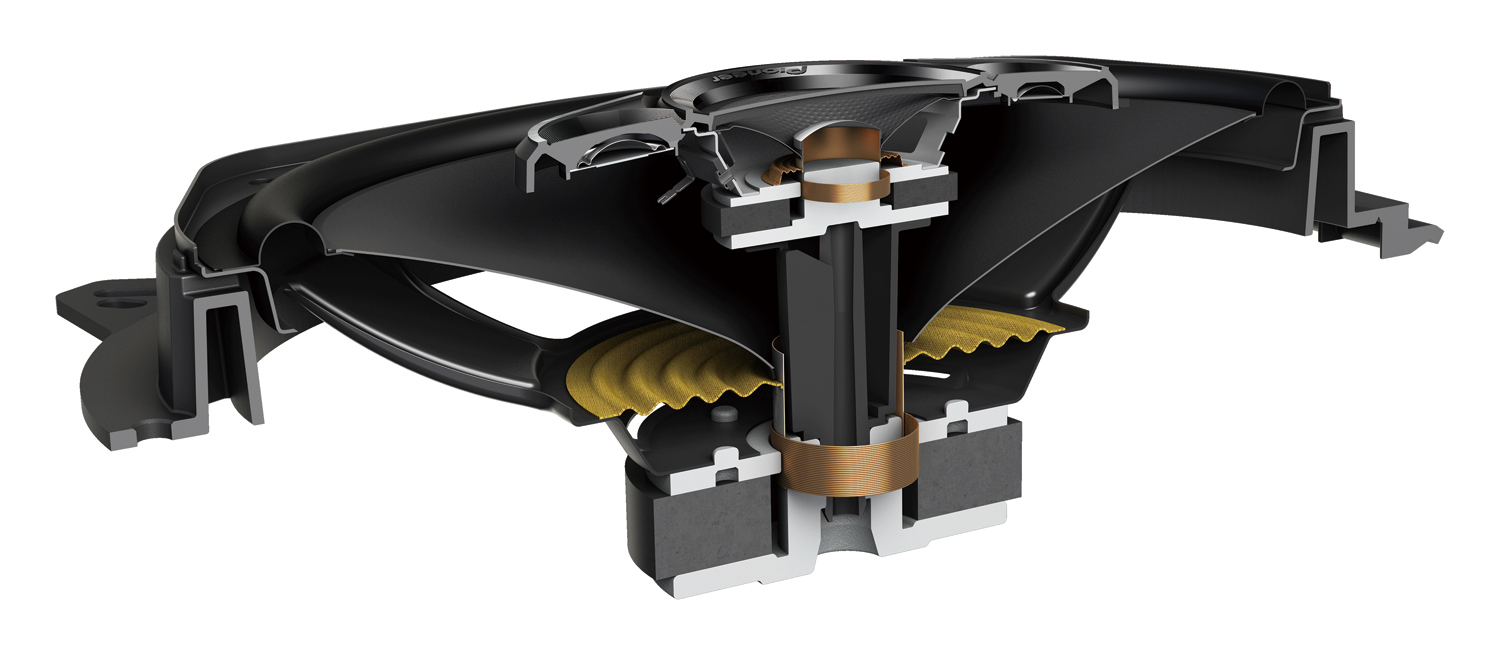

IMPP Cone Construction
Carbon & Mica reinforced IMPP cone for deeper and richer bass response.
Pioneer’s Sound Concept “Open & Smooth”™
The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.
| GENERAL | |
| Size | 6x9" |
|---|---|
| Design | 6x9" 4-Way Coaxial System |
| Tweeter Design | 18mm hard dome |
| Tweeter Composition | Polyethylene Terephthalate (PET) |
| Woofer Composition | Carbon and mica reinforced IMPP |
| Woofer Surround | Elastic polymer |
| Woofer Magnet Composition | Ferrite |
| Warranty | 1 Year |
| INSTALLATION SPECIFICATION | |
| Max. Music Power (Nominal) | 450W MAX (90W Nom) |
| Frequency Response | 35Hz - 24kHz (-20dB) |
| Sensitivity (1W/1 m) | 86 dB |
| Impedance | 4Ω |
| Mounting Depth | 72mm |
| Cut-Out Dimensions | 153mm x 222mm |
