The only thing thin about the L7T thin subwoofer is the mounting depth. Whether it’s on the road or trail, these tough subs work perfectly in nearly anything with a motor.

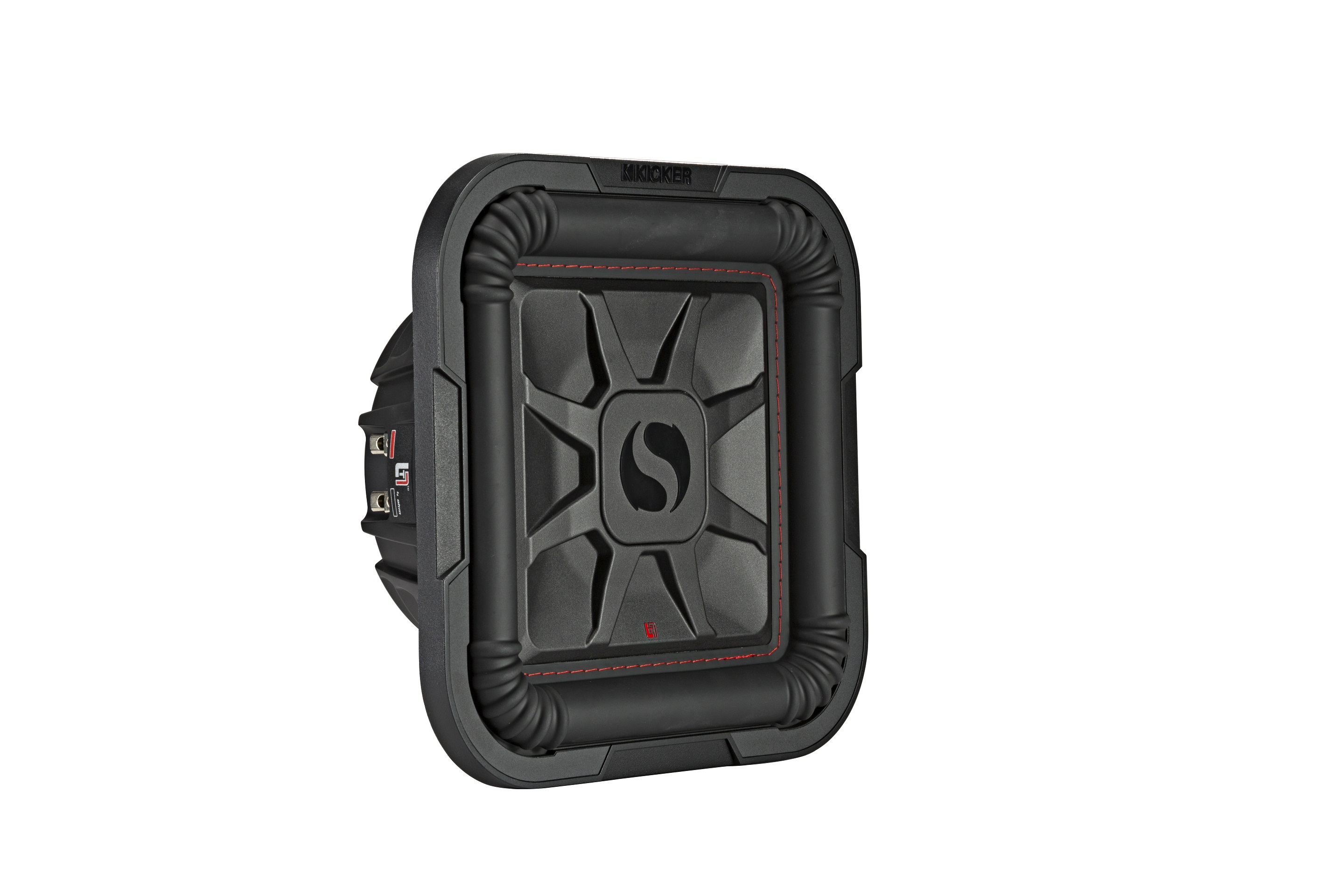

The L7T 10-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.

With our custom SoloKon™ technology and the L7T’s unique interior support system, the sub sounds fat – but keeps it thin! Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.

Features:

Uses a Sealed or Ported Enclosure
Square Sub Design Moves 20% More Air Than Round Subwoofers
Easily Mounts Under or Behind a Seat
Dual Voice Coil Design
Ribbed Santoprene Surround Resists Heat And Degrading
Bumped Top Plate For More Excursion & Smoother Performance
SoloKon™ Cone With 360-Degree Back Bracing
UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation

Specifications
Size (IN.,CM)
10, 25
Impedance (OHMS)
4 DVC
Max Rec Amplifier Power (WATTS PEAK/RMS)*
1000/500
Sensitivity (dB 1w/1m)
85.98
Frequency Response (Hz)
25-100
Mounting Depth (IN.,CM)
3-3/4, 9.5
Mounting Cutout, Square (IN.,CM)
9-5/16, 23.7
Min Rec Sealed Box Volume (CU. FT., Liters)
.4, 11.3
Max Rec Sealed Box Volume (CU. FT., Liters)
1.25, 28.3
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.25, 35.4
Max Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
What’s in the box?
one 10-inch subwoofer, one owner’s manual, two stickers
